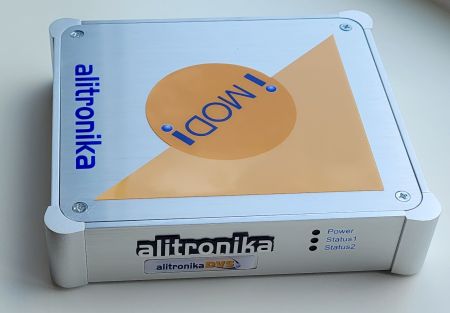

AT270USB
iMod!

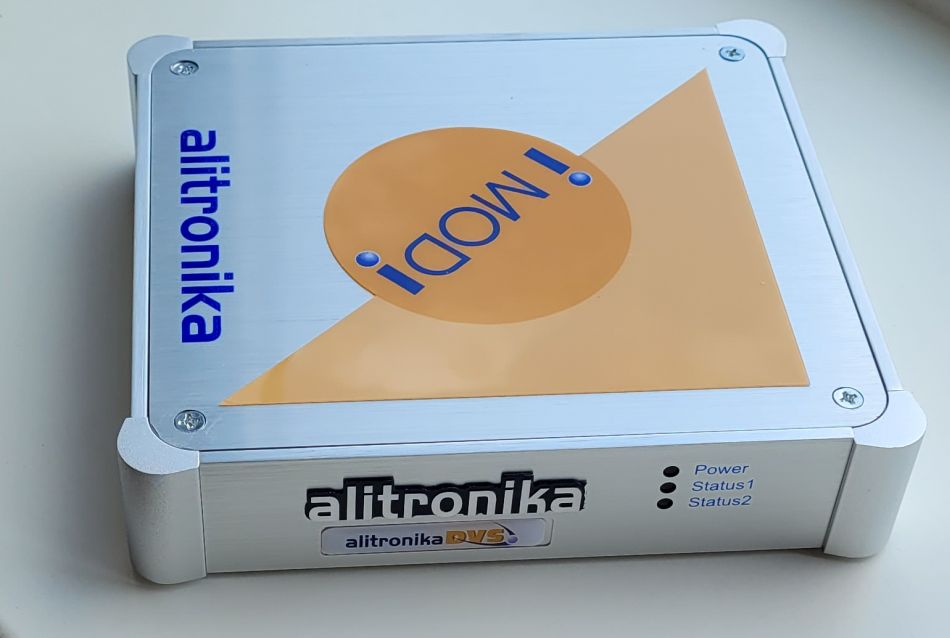

Smallest Multi Standard Modulator
DVB-C (QAM-A/B/C)
VHF & UHF Up-converter
RF output
|
 |
 |
|
|
|
|
| |
|
Standard Features:
Combined DVB-C, QAM-A/B/C & Modulator with VHF & UHF Upconverter.
High Speed USB 2.0
Windows Drivers & SDK.
Linux Drivers.
Accompanied by DVSStation3 Alitronika's Application Software.
Supports DVB According to Standard A1010 Rev1 and EN50083.
Modulation of Transport Stream files
All modulation processes are carried out by the hardware so that there is no load on the PC processor,
So there is no need for an expensive high performance PC.
Supports Burst or continuous modes, 188 and 204 packet sizes.
Bitrates:
- DVB-C : 14 MB/s to 65 MB/S.
Output
RF Output.

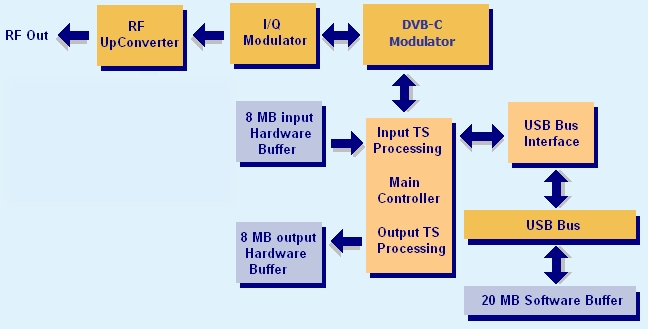

Block Diagram:

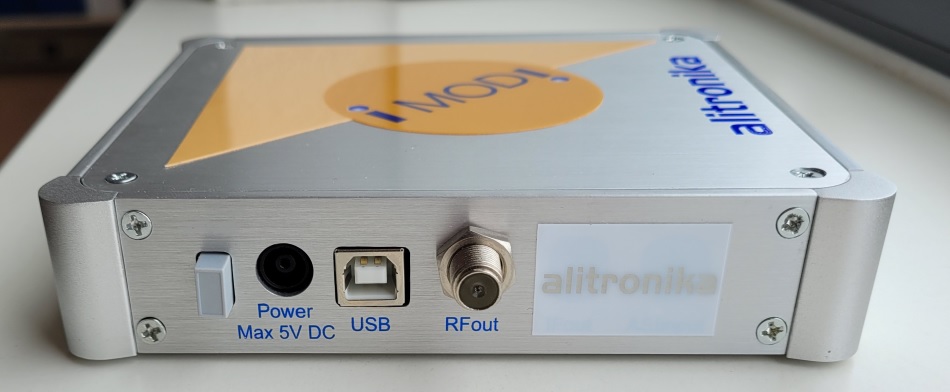

Connections:
Application:
Targeted for Digital Video Professionals, Sophisticated End Users and OEMs the AT720USB is an ideal solution for a number of applications such as:
Development Tools for DVB-C Receiver R&D. IP to DVB Gateway. DVB-C Transport Stream Generation. Stand alone QAM ( Cable TV ) signal generator for Test & Validation. Demonstration and Trade Shows. DVB-C output for OEM product.
Specification:
On Board Buffer:16 Mbytes. RF Connector:F-type. RF Output Frequency Range:50MHz to 1000MHz. RF Output Power over bandwidth:-15dBm to -50dBm, adjustable in 0.5dB steps. Channel Bandwidth: 6MHz, 8MHz. Standards:QAM according EN 300 744. Modulation Modes:16QAM, 32QAM, 64QAM, 128QAM and 256QAM.
| |
|
Application Software:

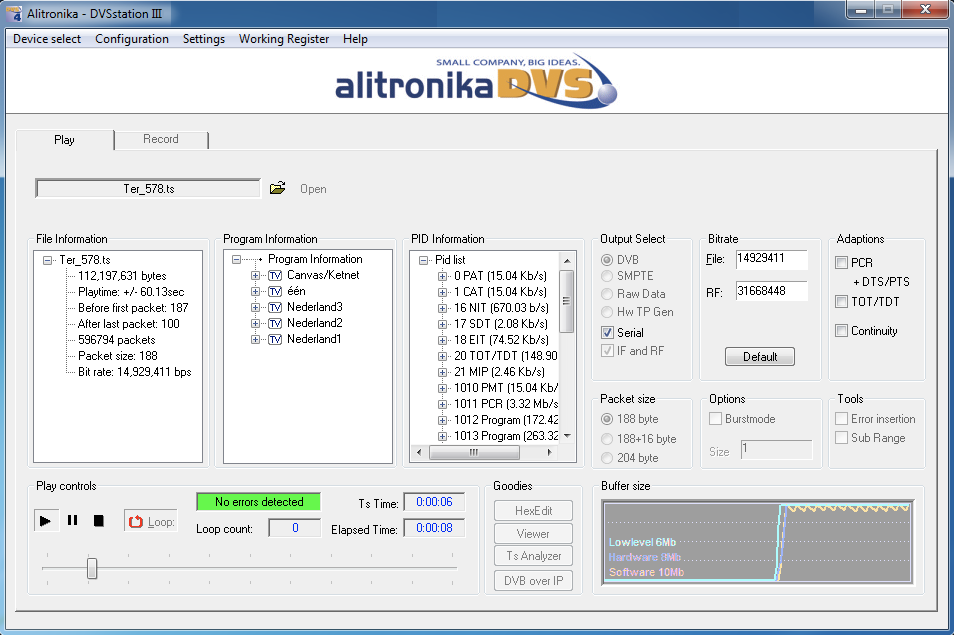

DVSStation3: Alitronika devices are supported by DVSStation3, DVSStation4 or DVSStationIP, Alitronika's FREE Transport Stream Player, Recorder, Analyser and converter application software. Please refer to the specification and User Manual of these applications for more information. Even better please download them from our website and try them out. They works in DEMO mode without any Alitronika devices.Play Screen=> In normal operating conditions
Record Screen => In normal operating conditions
DVB-C Settings
RF Settings
The application software provides the user with many functions & features such as :
PID Filtering
Bit, Byte & Packet error insertion
TOT & TDT selection
PlayBack in loops, sub-loops.......
Hardware Working Regiters are accessable for monitoring
Among the "Goodies" are a Video Viewer
Hex Editor
As well as the Integrated Quick TS Analyzer, TSReader support these devices.
| |
|
