Digital Video Interfacing Products


i Do it All

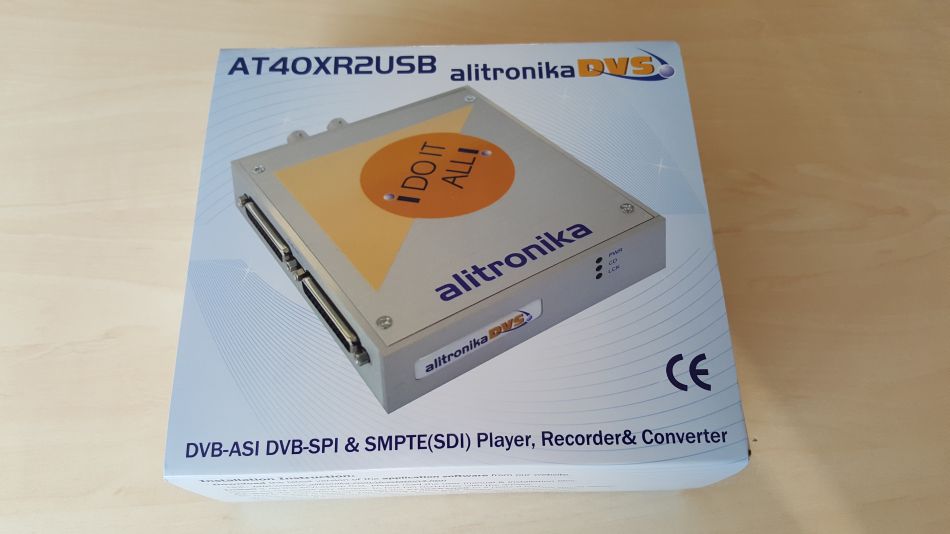

AT40XUSB

MPEG2 TS Player, Recorder & Converter
DVB-ASI & DVB-SPI Input & Output
Serial SMPTE ( SDI ) & Parallel SMPTE Input & Output
No External power supply needed





  Order this product
  Contact
  Ask for a Quotation

Datasheet



Drivers



SDK




Standard Features:

  The Ultimate Stream Player/Recorder device. Combines functions of 8 Devices.
 1- DVB-ASI to USB 2.0 converter (
ASI TS Recorder)
 2- USB 2.0 to DVB-ASI converter (
ASI TS Player)
 3- DVB-SPI( LVDS or LVTTL/LVCMOS ) to USB 2.0 converter (
SPI TS Recorder)
 4- USB 2.0 to DVB-SPI( LVDS or LVTTL/LVCMOS ) converter (
SPI TS Player)
 5- SDI to USB 2.0 converter (
SDI Recorder)
 6- USB 2.0 to SDI converter (
SDI Player)
 7- DVB-ASIto DVB-SPI converter (
Serial to Parallel converter)
 8- DVB-SPIto DVB-ASI converter (
Parallel to Serial converter)
 High Speed USB 2.0
 Windows XP, Vista, Windows 7 & Windows 10 Drivers + SDK & Linux Drivers.
 Accompanied by DVSStation3 Alitronika's Application Software.
 Supports DVB According to Standard A1010 Rev1 and EN50083.
 Supports 188 & 204 byte or Arbitrary Packet Sizes.
Input
 Integrated Loop Through output.
 Automatic Cable Equalization of up to 350m.
 Supports True or Inverted ASI signals.
 Carrier and Lock Detection.
 Sync, Error & Code Violation Detection.
 PID filtering by Hardware.
 PCR Time stamping by Hardware.
Output
 Programmable Output Bit Rate.
 Can play Higher Bitrate then the TS file.
 Can output True and Inverted signals.
 Supports Burst Mode, RAW Data Mode.
 Null packet insertion by Hardware.
 PCR, continuity counter correction.
 Packet time and date correction.
 Error insertion.
 Hardware Generated Null Packet or Counter Packet.

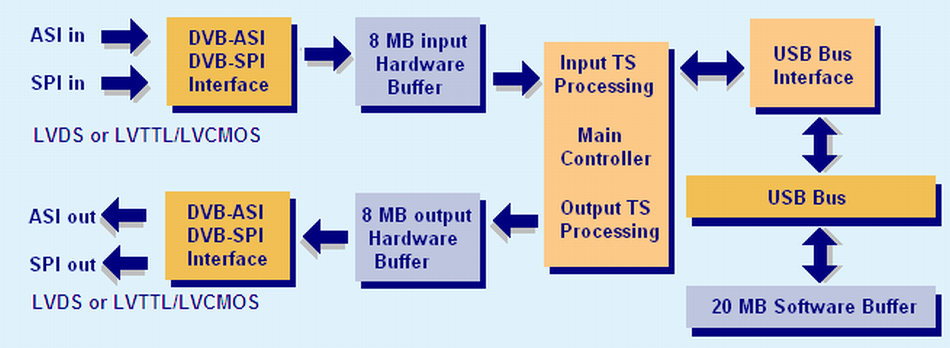

Block Diagram:

Animation:

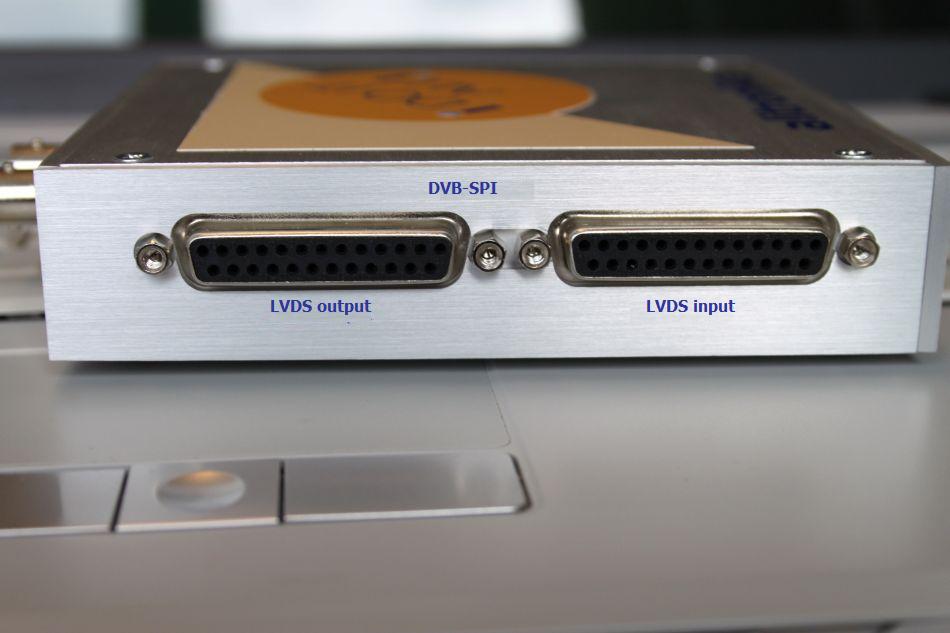

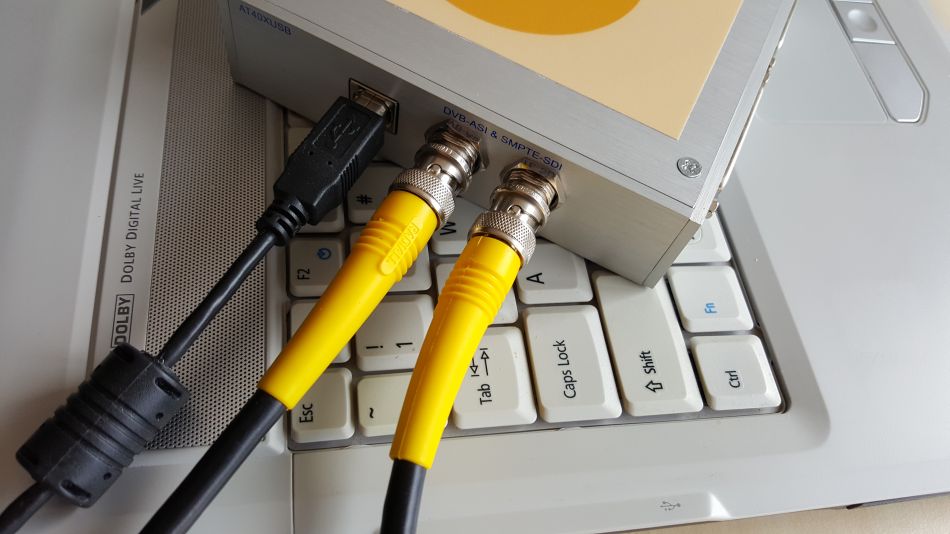

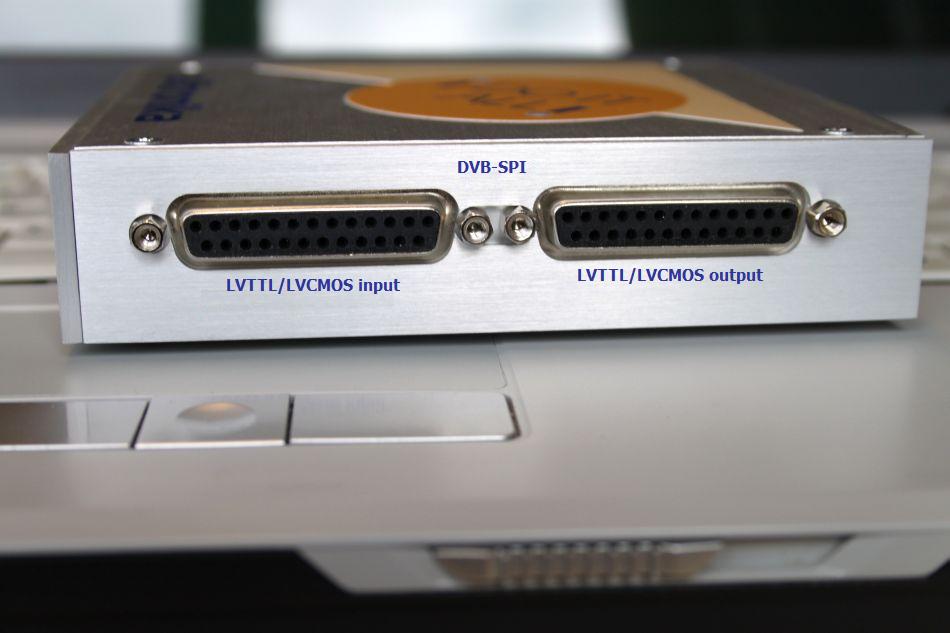

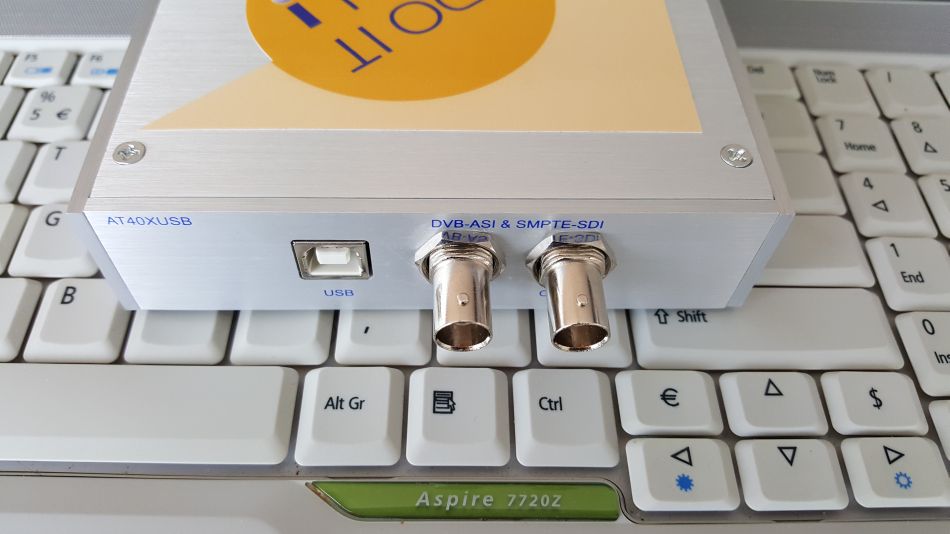

Connections:

Application:
Targeted for Digital Video Professionals, Sophisticated End Users and OEMs
the AT40XUSB is an ideal solution for a number of applications such as:
Development Tools.
DVB to IP Gateway.
Universal Interface for Digital Video or MPEG-II Transport Stream Recording, Playing and Processing.
Video on Demand Server.
Transport Stream Test Generator.
High Speed Serial Data Link.
Software Based MPEGII Encoders and Decoders.
Specification:
On Board Buffer: 16 Mbytes.
DVB-ASI Connector: 75 Ohms BNC.
Input Return Loss: >15 dB.
Input Signal level: 800 mV +/- 10%
Output Signal level: 1.0Vp-p nominal.
DVB-SPI Connector: 25-pin sub-D.
DVB-ASI Input/Output Bit Rate: 0 to 214 Mbit/s.
DVB-SPI Input/Output Bit Rate: 0 to 108 Mbit/s.
Bit Rate Stability:
                               Standard: +/- 25ppm.
                               Maximum: +/- 1ppm.
DVB-ASI Output Clock: 270 MHz.
DVB-SPI Output Clock: 0 to 13.5 MHz.
DVB-SPI Output Level: LVDS and 3.3V LVTTL/LVCMOS levels.
Application Software:
DVSStation3/4/IP: Alitronika devices are supported by DVSStation3/DVSStation4 or DVSStationIP, Alitronika's FREE Transport Stream Player, Recorder, Analyser and converter application software. Please refer to the specification and User Manual of these applications for more information. Even better please download them from our website and try them out. They works in DEMO mode without any Alitronika devices.

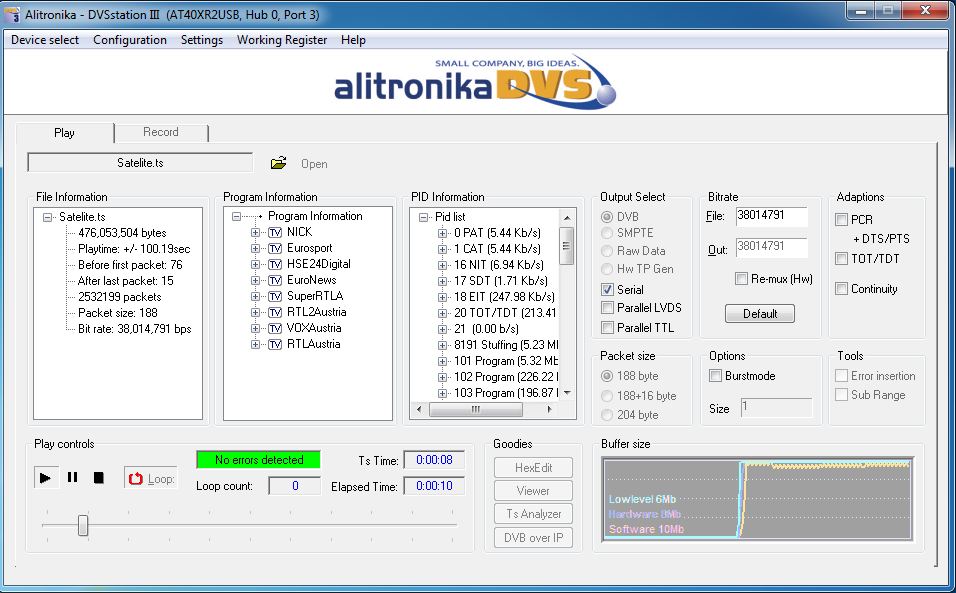

Play Screen

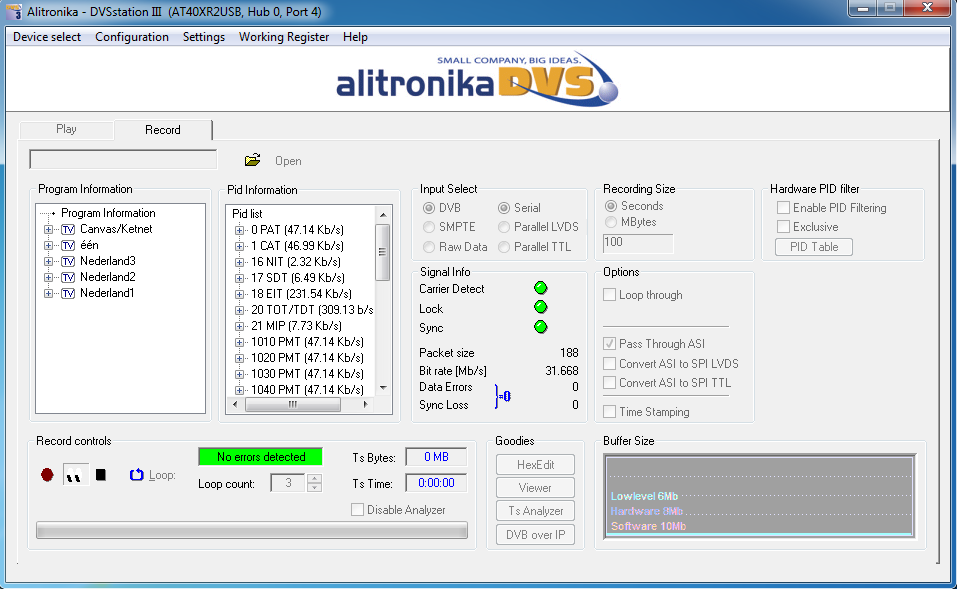

Record Screen

The application software provides the user with many functions & features such as :

PID Filtering

Bit, Byte & Packet error insertion

TOT & TDT selection

PlayBack in loops, sub-loops.......

Hardware Working Regiters are accessable for monitoring

Among the "Goodies" are a Video Viewer

Hex Editor

A DVB to IP Player/Converter

As well as the Integrated Quick TS Analyzer,TSReader support these devices.

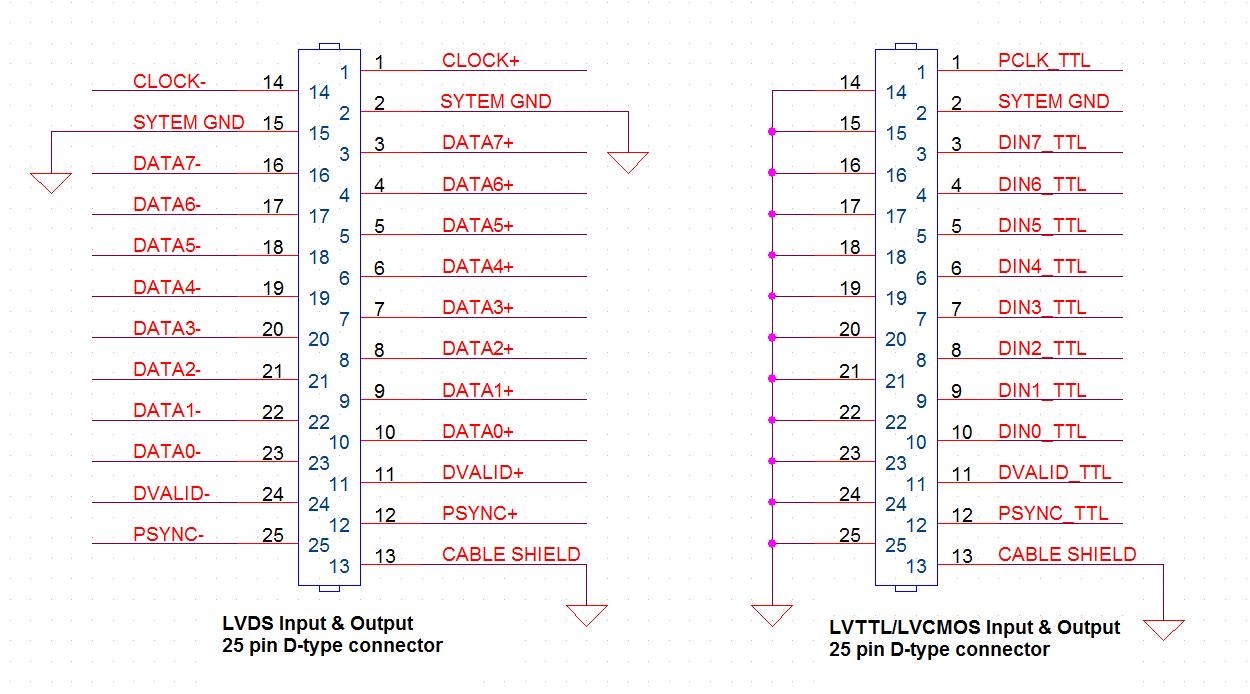

Pinout of the LVDS & LVTTL connectors
