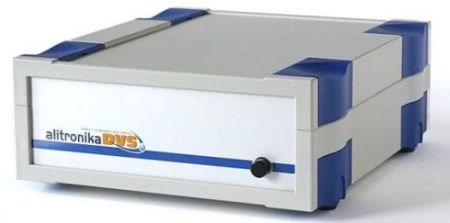

AT660USB

DVB-S2/S Receiver, Recorder & Converter
DVB-S2/S Input
DVB-ASI/SPI Outputs

DVB-S2/S to USB Converter
DVB-S2/S to DVB-ASI/SPI Converter



  Order this product
  Contact
  Ask for a Quotation

Datasheet



Drivers



SDK




Standard Features:

 Combined DVB-S2/S Input and DVB-ASI/SPI Output Device.
 High Speed USB 2.0
 Windows XP, Vista, Windows 7 & Windows 10 Drivers + SDK & Linux Drivers.
 Accompanied by DVSStation3 Alitronika's Application Software.
Input
 DVB-S2/S Direct TV Compliant QPSK Reception.
 Demodulation Standards: DVB-S, DVB-S2, DVB/DSS.
 Input Frequency Range: 950 MHz to 2150 MHz.
 Symbol Rate: 2 Mbaud to 45 Mbaud.
 Channel Bitrate: 190Mbit/s.
 Supports 188, 204 Transport Packet Sizes.
Output
 RF Loop Through Output.
 Simultaneous two Serial ( ASI ) and one Parallel ( SPI ) Outputs.
 Supports DVB According to Standard A1010 Rev1 and EN50083.

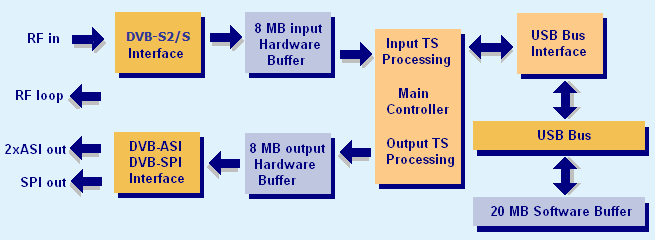

Block Diagram:

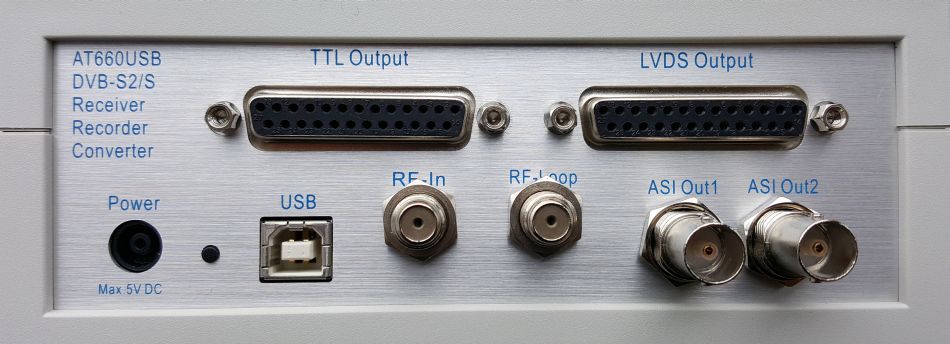

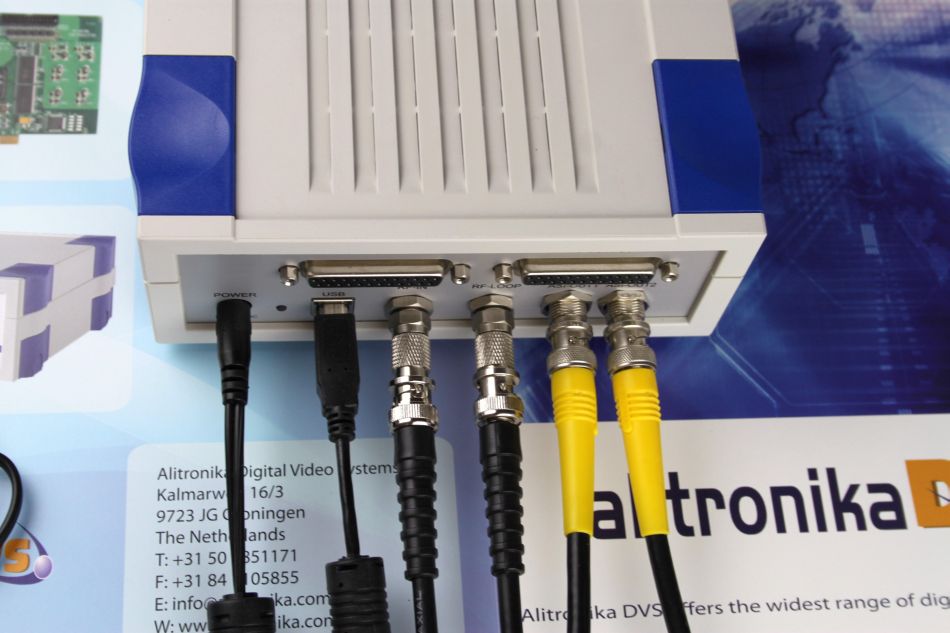

Connections:

Application:
Targeted for Digital Video Professionals, Sophisticated End Users and OEMs
the AT660USB is an ideal solution for a number of applications such as:
Development Tools.
DVB to IP Gateway.
DVB-S2/S to DVB-ASI & DVB-SPI Converter.
MPEG-II Transport Stream Recording, Monitoring, Playing & Processing.
Software Based MPEGII Decoders.
Specification:
On Board Buffer: 16 Mbytes.
RF Tuner Connector: 75 Ohms F Type.
Loop Through Connector: 75 Ohms F Type.
Input Frequency Range:950 MHz to 2150 MHz.
Input Signal Level:-65dBm to -25dBm @ 27.5 Mbaud.
Maximum Symbol Rate: QPSK/LDPC/BCH: 45MSPS, 8PSK/LDPC/BCH:45MSPS, DVB:1-45MSPS.
DisEqc: DisEqC 2.X.
Standards: DVB-S2/S & Direct TV.
Demodulation Standard: DVB-S2 & DVB/DSS compliant.
Modulation Method: DVB-S:QPSK, DVB-S2: QPSK, 8PSK, 16APSK & 32APSK.
Supported Code Rate:
-QPSK: 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9 and 8/10.
-8PSK: 3/5, 2/3, 3/4, 4/5, 5/6, 8/9 and 9/10.
-16APSK: 2/3, 3/4, 4/5, 5/6, 8/9 and 9/10.
-32APSK: 3/4, 4/5, 5/6, 8/9 and 9/10.
DVB-ASI Connector: 75 Ohms BNC.
Output Signal level: 1.0Vp-p nominal.
DVB-SPI Connector: 25-pin sub-D.
DVB-ASI Output Bit Rate: 0 to 214 Mbit/s.
DVB-SPI Output Bit Rate: 0 to 108 Mbit/s.
DVB-ASI Output Clock: 270 MHz.
DVB-SPI Output Clock: 0 to 13.5 MHz.
DVB-SPI Output Level: LVDS.
Application Software:
DVSStation3/4/IP: Alitronika devices are supported by DVSStation3/DVSStation4 or DVSStationIP, Alitronika's FREE Transport Stream Player, Recorder, Analyser and converter application software. Please refer to the specification and User Manual of these applications for more information. Even better please download them from our website and try them out. They works in DEMO mode without any Alitronika devices.

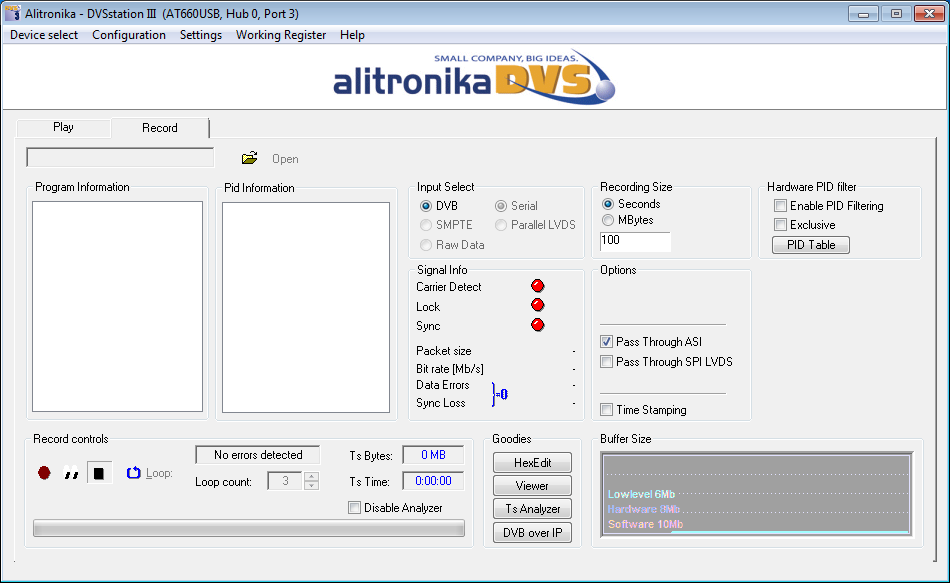

Record Screen => Before correct RF & LNB settings are selected.

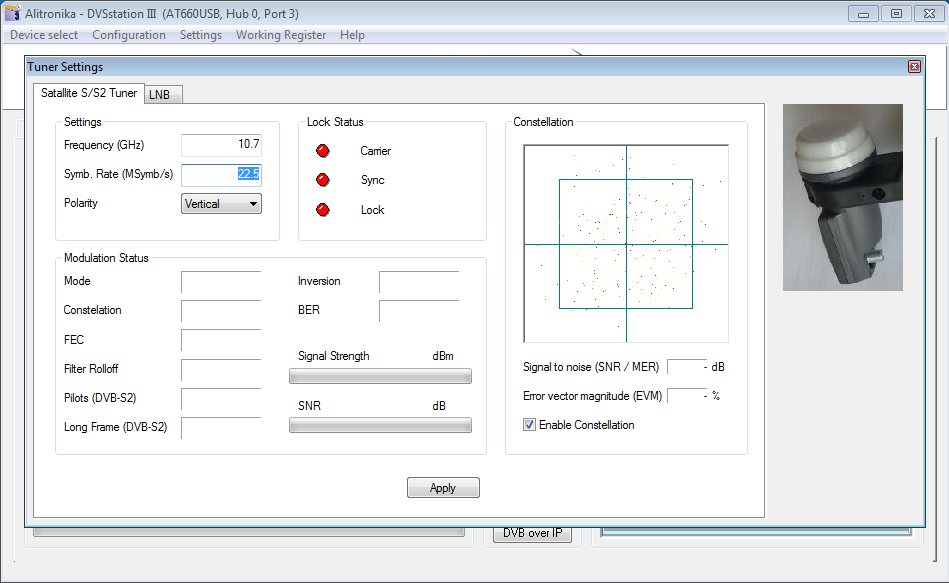

DVB-S2/S Tuner Settings => Shows Errors before all settings are selected

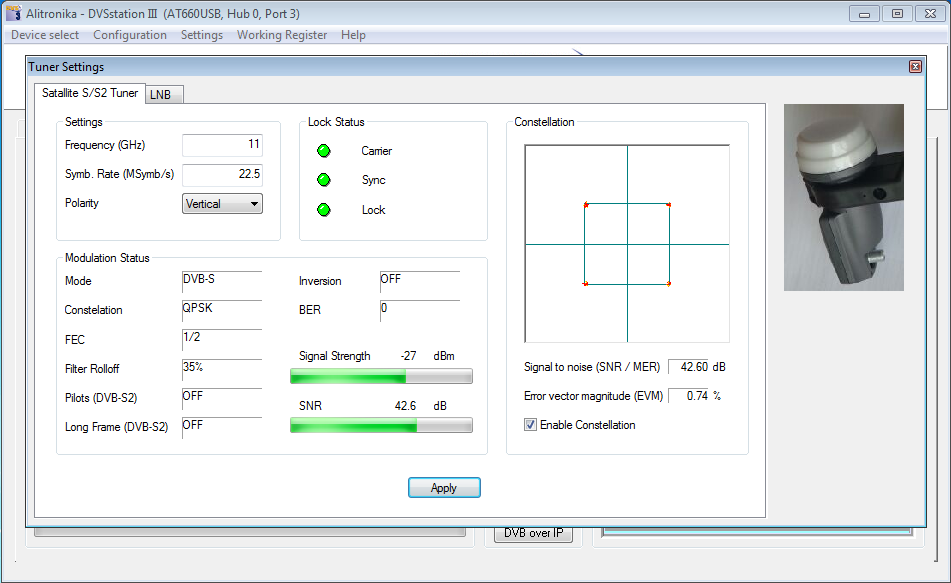

DVB-S2/S Tuner Settings => With all correct settings

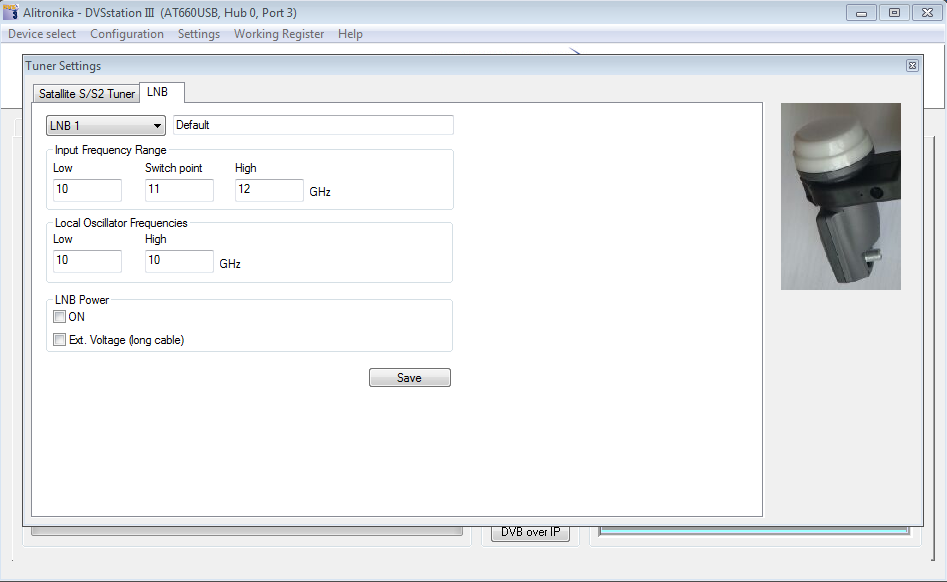

LNB Settings => LNB power can be activated when connected to a LNB.

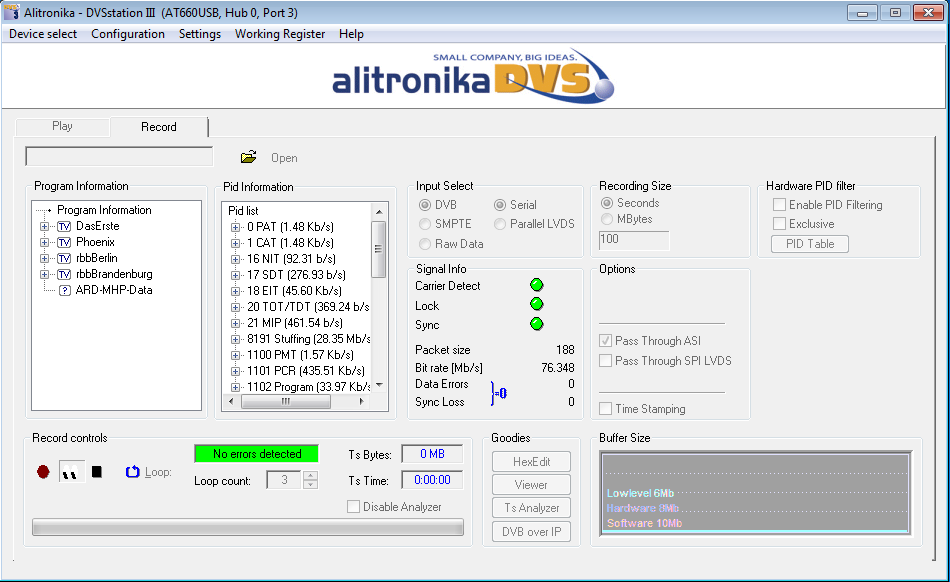

Record Screen => In normal operating conditions

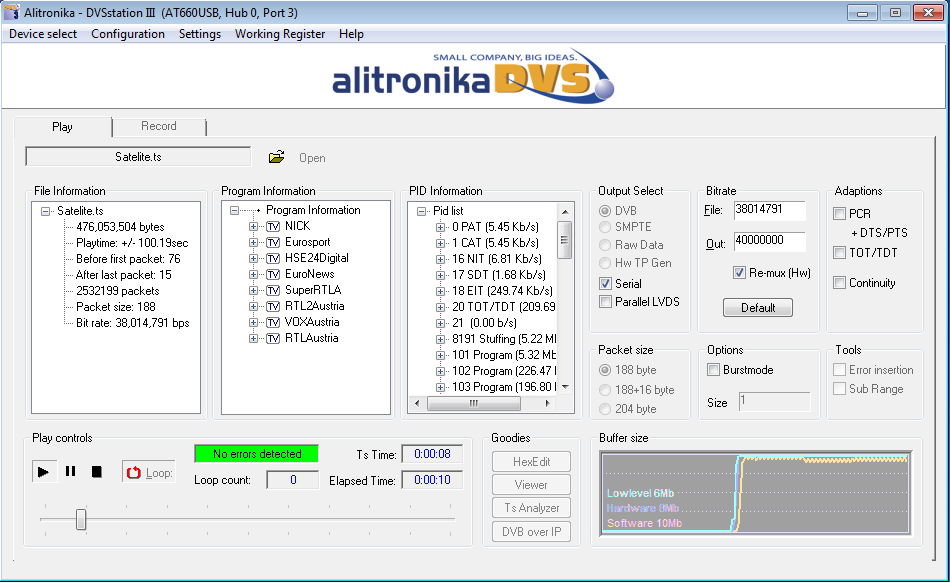

Play Screen

The application software provides the user with many functions & features such as :

PID Filtering

Hardware Working Regiters are accessable for monitoring

Among the "Goodies" are a Video Viewer

Hex Editor

A DVB to IP Player/Converter

As well as the Integrated Quick TS Analyzer, TSReadersupport these devices.
