Digital Video Interfacing Products


AT88IP

MPEG2 TS Player, Recorder & Converter . TS-over-IP.
DVB-T2/T/C input & DVB-ASI Output
DVB-IP Transmiter & Receiver
Tunnelling of DVB-T2/T/C signals over LAN, WAN or the Internet


Pro-MPEG Code Of Practice #3(COP3) forward error correction (FEC)





  Order this product
  Contact
  Ask for a Quotation

Datasheet



Drivers



SDK




Standard Features:

Combined DVB-T2/T/C to DVB-IP/DVB-ASI Converter.
Web based Software as well as DVSStationIP,Alitronika's TS Recorder/Player/Analyzer.
Windows XP, Vista, Windows 7 ( 64bit ) Drivers/SDK, Linux Drivers.
Remote Web-based configuration management and remote firmware upgrade.
Saved configuration setting. No re-configuration needed after system reboot.
IP Encapsulation of the TS data for Ethernet uses IP and the User Datagram Protocol (UDP).
Real-time Transport Protocol (RTP)encapsulation.
Pro-MPEG Code Of Practice #3(COP3) forward error correction (FEC).
Dedicated hardware performs the encapsulation, which maximizes the throughput and latency.
IP
Encapsulation of the TS data for Ethernet uses IP and the User Datagram Protocol (UDP), with Real-time Transport Protocol (RTP) encapsulation and COP3 FEC.
Dedicated hardware performs the encapsulation, which maximizes the throughput and minimizes latency.
The device can accept traffic from Ethernet network and recover TS data.
For RTP encapsulated data, the device incorporates buffer to absorb network jitter and correct for packet reordering and packet duplication.
COP3 FEC-based lost packet recovery is available.
For multiple TS interfaces, the AT88IP, individually maps each one to a specific UDP/IP socket (a combination of IP address and UDP port).
All other encapsulation parameters can also be individually configured per TS.
Input
IP Maximum rate of up to 214 Mbps per ASI channel.
Network jitter correction.
Supports constant bit rate ASI output.
IP address assignment from DHCP server and static IP address.
IP address also configurable through the web interface.
Configuration for Time To Live (TTL) for Multicast.
DVB-T2/T/C Compliant COFDM Reception.
Input Frequency Range:
- High Band: 434.0 MHz to 858.0 MHz.
- Mid Band: 149.5 MHz to 426.0 MHz.
- Low Band: 50.5 MHz to 142.5 MHz.
Modulation Modes: DVB-T/T2: QPSK, 16QAM, 64QAM
Modulation Modes: DVB-C: 64QAM, 128QAM, 256QAM
Guard Interval: DVB-T/T2: 1/4, 1/8, 1/16,1/32
Supports hierarchical & non-hierarchical modes.
Supports 188, 204 Transport Packet Sizes.

Output
RF Loop Through Output.
DVB-ASI Output.
Supports DVB According to Standard A1010 Rev1 and EN50083

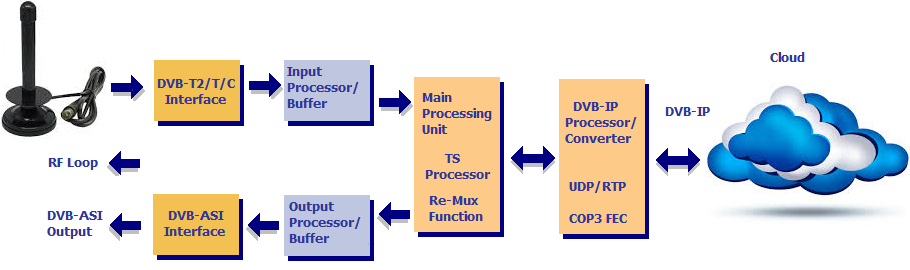

Block Diagram:

AT88IP the Key to the Cloud

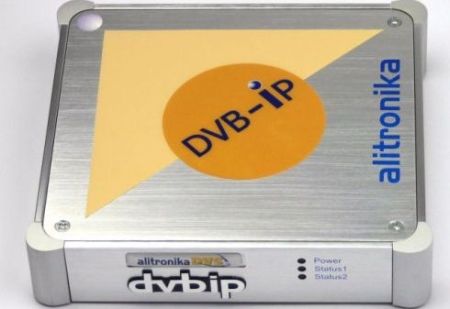

The AT88IP

AT88IP => DVB-T2/T/C to IP converter.

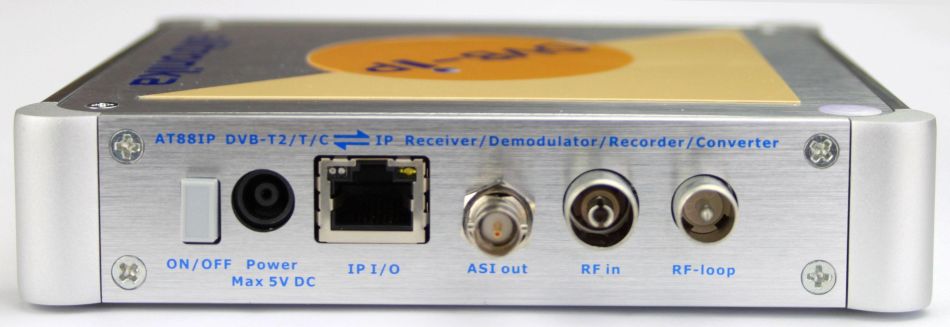

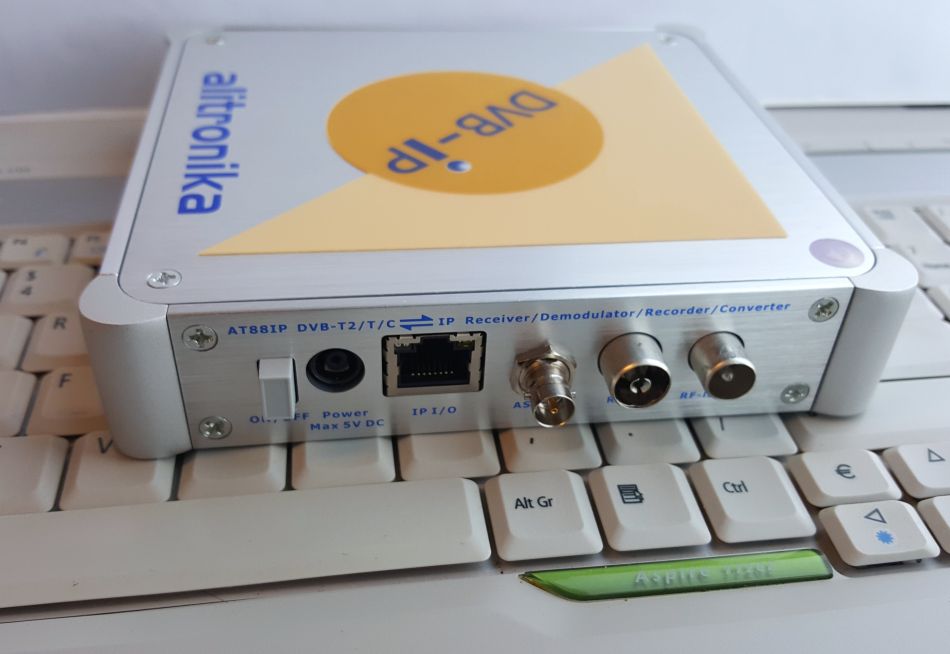

Connections:

Application:
Targeted for Digital Video Professionals, Sophisticated End Users and OEMs
the AT88IP is an ideal solution for a number of applications such as:
Development Tools.
DVB-T2/T/C to IP Gateway.
Universal Interface for Digital Video or MPEG-II Transport Stream Recording, Playing and Processing.
Video on Demand Server.
Software Based MPEGII Encoders and Decoders.
Studio to Transmitter Links.
ENG (Electronic News Gathering) Stream content to and from remote locations.
Specification:
PROTOCOL SUPPORT:
DVB-IP:
Ethernet encapsulation: IEEE 802.2 SNAP, Eth.
Encapsulation: UDP or RTP
IP support: IPv4
IP-address assignment: DHCP,link local or static
Multicast support: IGMPv2
Date Rate: 100/1000
GigE port Physical layer: IEEE 802.3a
GigE port Connector: RJ-45 with LEDs
FEC: Pro-MPEG Code Of Practice #3(COP3)
TSoIP to ASI latency: Less than 1ms
Jitter tolerance range: 1 .. 500ms
DVB-T2/T/C:
RF Tuner Connector: 75 Ohms IEC female Type
Loop Through Connector: 75 Ohms IEC male Type.
Input Frequency Range:
    High Band: 434.0 MHz to 858.0 MHz.
    Mid Band: 149.5 MHz to 426.0 MHz.
    Low Band: 50.5 MHz to 142.5 MHz.
Channel Bandwidth:6, 7 & 8 MHz.
RF Sensitivity: -80dBm.
COFDM Spectrum (DVB-T2/T): 2k and 8k carriers non-hierarchical and hierarchical.
Standards: DVB-T2, DVB-T, DVB-C compliant.
Modulation Modes: DVB-T/T2: QPSK, 16QAM, 64QAM
Modulation Modes: DVB-C: 64QAM, 128QAM, 256QAM
Guard Interval Modes: 1/4, 1/8, 1/16, 1/32.
DVB-ASI:
DVB-ASI port Physical layer: EN50083-9
DVB-ASI Connector: 75 Ohms Mini BNC.
Input Return Loss: >15 dB.
Input Signal level: 800 mV +/- 10%
Output Signal level: 1.0Vp-p nominal.
DVB-ASI Input/Output Bit Rate: 0 to 214 Mbit/s.
DVB-ASI Output Clock: 270 MHz.
Application Software:
DVSStation3/4/IP: Alitronika devices are supported by DVSStation3/DVSStation4 or DVSStationIP, Alitronika's FREE Transport Stream Player, Recorder, Analyser and converter application software. Please refer to the specification and User Manual of these applications for more information. Even better please download them from our website and try them out. They works in DEMO mode without any Alitronika devices.

Using the"Discover" function of DVSStationIP, the device is located

Two options, "Update" the device's Firmware or go to "Settings"

Updating the device's Firmware takes a few seconds

Play Screen - Select the device's IP address & send Transport Streams to it

Record Screen - Or Receive & Record Transport Streams from it

Web application Main Screen

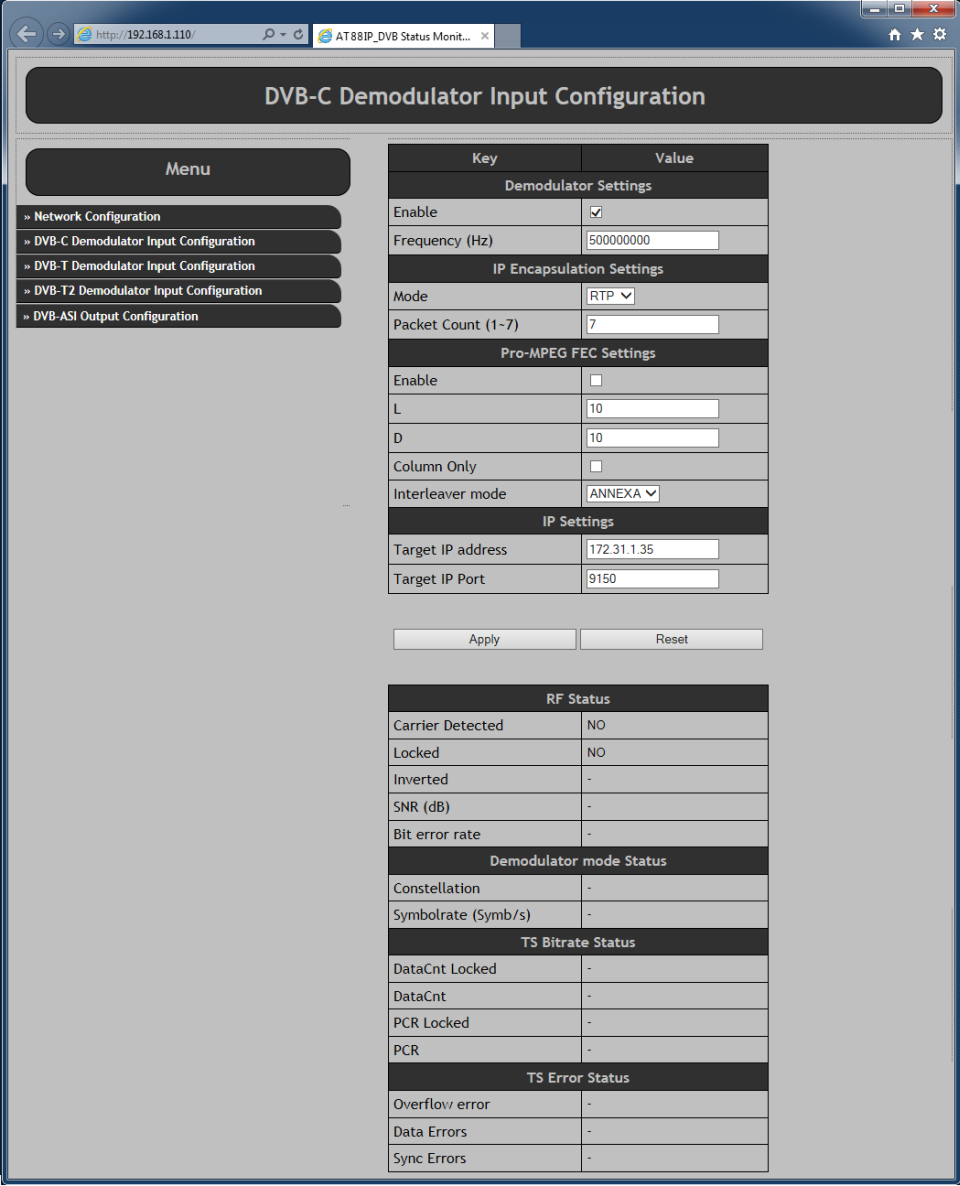

DVB-C Input Settings

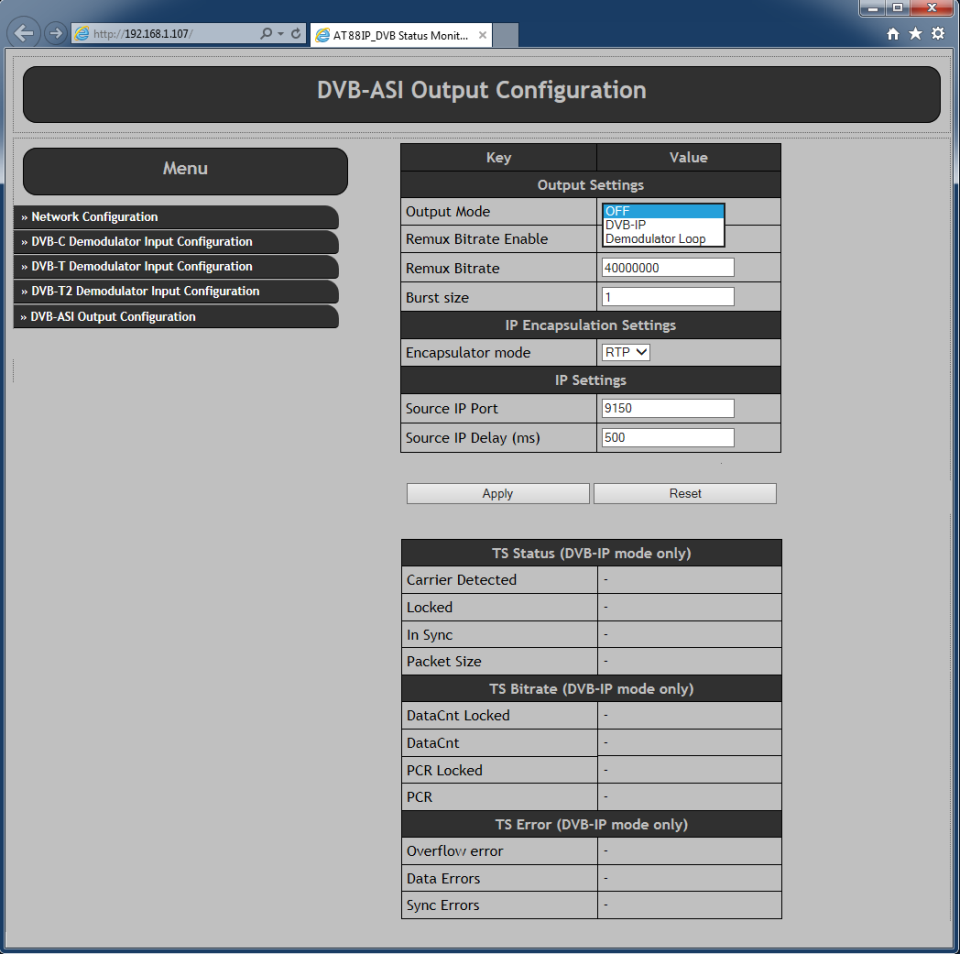

DVB-ASI Output Settings
